3105 H16 aluminum sheet coil for Aluminum ROPP Closures

Last Updated :Apr. 10, 2024

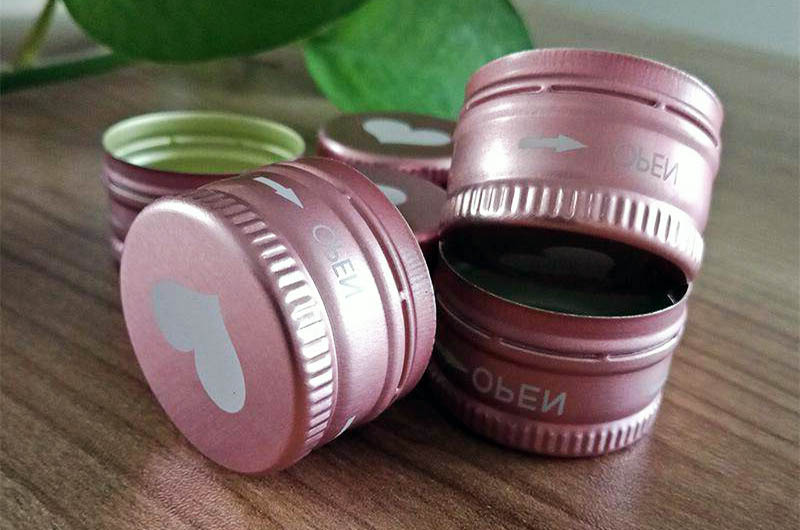

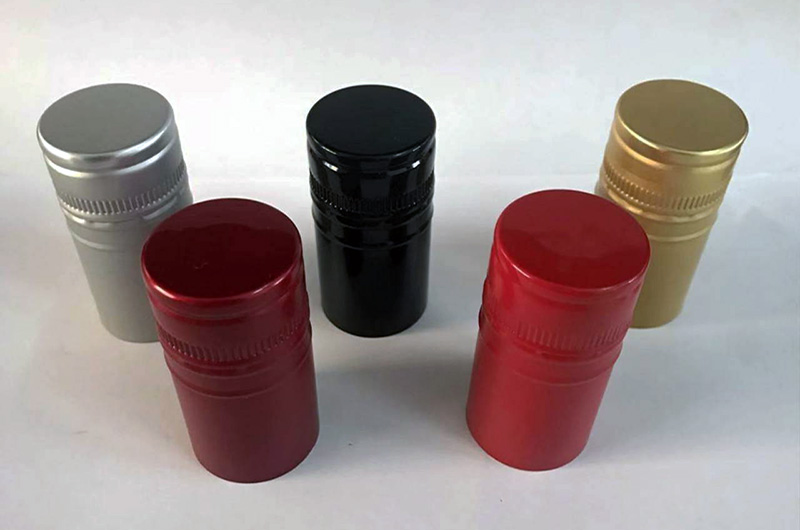

Aluminum ROPP (roll-on pilfer-proof) caps have become the industry standard for sealing all types of bottles, especially in the beverage and pharmaceutical sectors. These caps offer many benefits such as tamper resistance, airtight seal, and compatibility with automated filling lines. One of the key components of ROPP bottle caps is the roll of aluminum sheet used in the manufacturing process. Among the various grades available, 3105 H16 aluminum stands out for its special properties that meet the stringent requirements of ROPP bottle caps.

Product introduction of 3105 H16 aluminum sheet for aluminum ROPP bottle caps

3105 H16 aluminum alloy is a member of the 3000 series aluminum alloys and is known for its excellent formability, corrosion resistance and weldability. The "H16" temper designation indicates that the aluminum has been strain hardened and partially annealed, thereby enhancing mechanical properties suitable for the forming process. Alloy compositions typically include elements such as manganese and magnesium and trace amounts of other metals to achieve the desired properties.

The main metal element of 3105 H16 aluminum plate for aluminum ROPP bottle caps is Al-Mn. On the basis of 3003 aluminum alloy, some Cu and Mg are added to increase the mechanical properties of the finished product. This alloy has higher strength than 3003 alloy aluminum plate. The main thickness is 0.15-0.3mm, and the state is O state, H12, H14, H16, etc.

3105 H16 aluminum sheet coil features

• Formability: One of the key properties of 3105 H16 aluminum is its excellent formability, making it ideally suited to the manufacturing process that produces ROPP bottle caps. The material can be easily shaped into complex geometries without compromising its structural integrity.
• Corrosion Resistance: Aluminum is inherently highly resistant to corrosion, a property further enhanced by 3105 alloy, especially in environments where exposure to moisture and chemicals is common. This corrosion resistance ensures the longevity and reliability of ROPP bottle caps, maintaining the integrity of sealed contents.
• Surface Finish: The surface finish of 3105 H16 aluminum coils is generally smooth and uniform, which facilitates high-quality printing and branding on ROPP bottle caps. This enables manufacturers to implement complex design and branding elements that enhance the visual appeal of the final product.
• Strength and Durability: Despite its superior formability, 3105 H16 aluminum remains strong and durable enough to withstand the rigors of handling and shipping. This ensures that ROPP caps remain intact throughout the supply chain, minimizing the risk of damage or tampering.

Advantages of 3105 H16 aluminum sheet coil for ROPP bottle caps

Choosing 3105 H16 aluminum coils for ROPP bottle cap production has the following significant advantages:

• Cost-Effectiveness: Alloy 3105 offers an excellent balance between performance and cost, making it a cost-effective choice for ROPP closure manufacturers. It is available in a variety of sizes and thicknesses, further aiding in cost optimization.
• Compliance and Safety: Aluminum is inherently non-toxic and food safe, making it an ideal material for packaging applications in the food and pharmaceutical industries. 3105 H16 aluminum meets strict regulatory requirements for food contact materials, ensuring compliance with safety standards.
• Sustainability: Aluminum is highly recyclable and most aluminum products can be recycled and reused. By selecting 3105 H16 aluminum sheet coils for ROPP bottle caps, manufacturers can contribute to the circular economy by promoting the use of recycled materials and minimizing environmental impact.
• Customization: ROPP cap manufacturers can easily customize the design, shape, and size of their caps using 3105 H16 aluminum sheet rolls, allowing for branding opportunities and market differentiation.

• 8011 3105 Aluminium Sheets for Deep Draw ROPP Caps

• 3105 Aluminum Sheet Coil for Closure

Applications of 3105 H16 aluminum sheet coils in ROPP bottle caps

3105 h16 aluminum bottle caps are widely used in product packaging. Because aluminum has good oxidation resistance, a dense oxide film is formed on the aluminum surface, which protects the original physical properties of the product and has good sealing performance. It ensures that the product does not come into contact with the outside world.

3105 h16 aluminum ROPP bottle caps are used in a wide range of industries including:

• Beverages: ROPP bottle caps are widely used for bottling beverages such as wine, spirits, carbonated drinks and non-alcoholic beverages. The airtight seal provided by these caps preserves the freshness and quality of the contents, ensuring a satisfying consumer experience.
• Pharmaceuticals: In the pharmaceutical industry, ROPP caps play a vital role in sealing containers of pharmaceuticals, syrups, and other health products. The tamper-evident features of these closures give consumers confidence in the safety and integrity of packaged medications.
• Food: Certain foods, especially those that require airtight packaging to preserve freshness and prevent contamination, utilize ROPP seals. Such as cooking oils, sauces, condiments and specialty foods.

3105 H16 aluminum sheet coil manufacturing process

The production of 3105 H16 aluminum coils involves several stages, including:

1. Alloying: Alloy composition is carefully controlled to achieve desired properties, and precise levels of manganese and magnesium are added to enhance formability and corrosion resistance.
2. Casting: Molten aluminum alloy is cast into ingots or billets using various casting methods such as direct chill casting or continuous casting.
3. Hot rolling: An ingot is heated and passed through a series of rolling mills to reduce its thickness and improve its mechanical properties. Hot rolling also gives the material a uniform grain structure, thereby improving its strength and formability.
4. Cold Rolling: Hot rolled coils are then cold rolled to further reduce their thickness while maintaining tight dimensional tolerances. Cold rolling also improves the surface finish of the aluminum coil, making it suitable for subsequent processing steps.
5. Annealing: Cold rolled coils can be annealed to eliminate internal stress and enhance their formability. For 3105 H16 aluminum, partial annealing is typically used to achieve the desired temper.
6. Finishing: Depending on the specific requirements of the final application, the roll is then subjected to various finishing processes such as surface cleaning, coating and/or painting.

3105 H16 aluminum sheet coils play a key role in the production of aluminum ROPP bottle caps, offering a unique combination of formability, corrosion resistance, strength and cost-effectiveness. Meticulous manufacturing processes and strict quality control ensure that the final caps meet the stringent requirements of various industries such as beverages, pharmaceuticals and food. As the demand for safe and reliable packaging solutions continues to grow, 3105 H16 aluminum remains the first choice for ROPP closure manufacturers looking for a high-performance material that delivers value and sustainability.
