5182 Aluminum Coil Sheet for Closure Caps
5182 aluminum alloy can lid material is mainly used to make ring pull tabs for pull tab cans. Aluminum cans have the advantages of being lightweight, heat-resistant, conductive, odorless, non-toxic, good in printing, and recyclable. 5182-h19 aluminum sheet/coil is the perfect material commonly used for can lids. H19 tempered 5182 aluminum alloy has the characteristics of light weight, heat resistance, odorless and non-toxic, good printing effect, and high recycling rate. It is widely used in beer and beverage packaging cans.

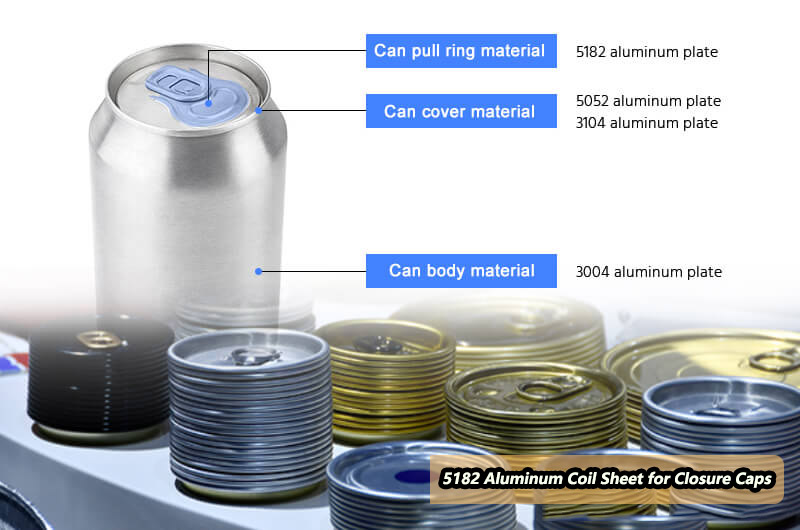

5182 aluminum alloy is the main alloy for ring pull materials, and 3004, 5052, etc. are mainly used for the bottom of the tank. These alloys are not only used to make all-aluminum cans, but are also widely used in packaging containers such as tinplate cans. With the development of the beverage industry and the replacement of old packaging materials, 5182 aluminum alloy will be more widely used in the packaging market.
Pull tab blanks are generally processed from 5052 and 5182 aluminum alloys, and tab can cover materials are generally processed from 5052 and 5182 aluminum alloys.
5182 aluminum coil is an aluminum alloy that is mainly used to make sealing caps, especially for beverage containers such as bottles and cans. Closure covers need to be lightweight, corrosion-resistant and easy to form, making aluminum an ideal material choice.
- Alloy Composition: 5182 Aluminum alloy typically contains elements such as magnesium, manganese, and chromium, which contribute to its strength and corrosion resistance.
- Strength: 5185 aluminum sheet coils have good strength, which is crucial to maintaining the integrity of the cover during loading, unloading and transportation.
- Corrosion Resistance: The inherent corrosion resistance of 5182 aluminum alloy makes it suitable for use in a variety of environments, including those exposed to moisture and acidic substances.
- Formability: This alloy is easy to form and can be effectively formed into closures of various sizes and designs.
- Surface treatment: The surface of 5182 aluminum coil plate can be treated with anodizing or Dos coating to enhance its appearance, durability and barrier properties.
5182 aluminum-magnesium plate has good heat resistance and electrical conductivity. At the same time, it is recyclable. And its printing effect is good. Most of our customers use our 5182 sheet for their canning operations. Especially, for your carbonated beverage packaging needs 5182 is more suitable than our 5052 aluminum plate. Meanwhile, our 5182 h19 coated aluminum strip and 5182 h48 aluminum strip are suitable for can manufacturing.
- 5182 H48 aluminum coil is an aluminum alloy commonly used in the production of beverage can lids. Due to its excellent formability and corrosion resistance, this aluminum alloy is very suitable for the production of can lid materials.
- 5182 H48 aluminum is the product of 5182 alloy aluminum tempered to the H48 state through a heat treatment process. This heat treatment process increases the strength of the alloy. 5182 H48 aluminum alloy has the same composition as 5182 alloy and has not changed.
- 5182 H48 aluminum alloy is stronger than 5052 H48, so 5182 H48 is mostly used for beverage lids with internal pressure, while 5052 H48 is used for beverage and food lids without internal pressure.
With the improvement of living standards and changes in living and eating habits, people have higher and higher requirements for food packaging. Beverages packaged in aluminum cans are also increasing rapidly. The number of cans for beer, carbonated drinks, tea drinks, energy drinks, etc. is growing rapidly. Currently, hundreds of billions of cans are consumed globally every year, and the number is growing. The aluminum alloy can lid is made of 5052 aluminum alloy, the pull ring is made of 5182 aluminum cover piece, and the can body is made of 3104 aluminum alloy and 3004 aluminum alloy.
The 5182 aluminum capping sheet developed by Haomei Aluminum has good strength and formability, ensuring high sealing performance.
The Specification of 5182 aluminum coil sheet for closure caps
| Aluminum | 5182 |
| Temper | H14, H16, H24, H26 |
| Width | 150-1900mm |
| Thickness | 0.2-0.51mm |
| Tensile strength | 360-430Mpa |
| Yield strength | ≥310～370 Mpa |
| Elongation | ≥6% |
| Material temper | H48, H19 |
| Packing | aluminum coil roll, aluminum strip |
| Typical Products | Can end, Can lids and pull ring |
5182 Aluminum Sheet for Closure Caps
5182 aluminum sheets are usually used directly to make sealing covers, while 518 aluminum coils are used in processes such as deep drawing to form covers. The choice between sheet and coil often depends on the specific requirements of the manufacturing process and available equipment.
5182 Aluminum coil for Closure Caps
5182 H48 aluminum coil is one of the aluminum alloys widely used in the production of beverage can lids. Its excellent formability and corrosion resistance make it an ideal choice for can lid materials.
5182 aluminum coil sheet for closure caps Tolerance
| Alloy | 5182 | |
| Thickness | 0.15~0.25 mm | (+/-0.005mm) |
| Width | 500~1000 mm | (+0.5mm, -0mm) |
| Length | 500~1000 mm | (+0.5mm, -0mm) |
| Coil | 500~1000 mm | |
| Strip | 20~500 mm | |
| Earing | 1 | |
| Diagonal | ≤ 1mm | |
5182 Aluminum Coil Sheet for Closure Caps Surface Type
- Ordinary milling
- DOS oil lubricated surface treatment
- Chrome surface treatment
- Gold/white/red/blue/black etc. on one side, protective paint on the other side
- Varnish/clearcoat on both sides
Haomei Aluminum 5182 Aluminum Coil Sheet for Closure Caps Quality Control
1. Strictly control good width tolerances
Thickness tolerance: ±0.01mm (preferably 0.005mm)
Width tolerance: ±1mm
Flatness requirements: height less than 3mm, wave number within 1 meter less than 3.
2. Shape control
Combined with the use of rollers, bending rollers, and spray molding, good flatness is controlled to ensure that the thermal machine crown is controlled between 0.1 and 0.8%, and there are no obvious visual waves on the thermal line.
3. Appearance quality
No edge cracks, neat rolled ends, no staggered pyramids.
Advantages of 5182 aluminum cover closure sheet coil
- 1. The surface of the 5182 aluminum cover closing sheet coil has no peeling, bubbles, surface roughness and local mechanical damage, and the aluminum surface has no defects.
- 2. 5182 aluminum cover closed plate coil has good corrosion resistance, cold workability and medium strength.
- 3. The 5182 aluminum cover sealing sheet coil has good gas welding, argon arc welding, spot welding and seam welding properties.
- 4. The 5182 aluminum cover closing sheet is flexible and not easy to crack due to stamping deformation.
- 5. The 5182 aluminum cover closure sheet is environmentally friendly and easy to recycle.
Chemical Compostions 5182 Aluminium closure sheet
5182 aluminum alloy mainly uses aluminum as the base metal, and the main alloying elements include magnesium (Mg) and manganese (Mn).
The exact composition is usually about 4-5% magnesium and 0.2-0.5% manganese, with the remainder being aluminum and trace elements.
| Alloy | 5182 | |
| Fe | 0.7 | |
| Si | 0.6 | |
| Cu | 0.3 | |
| Mn | 0.3~0.8 | |
| Mg | 0.2~0.8 | |
| Cr | 0.2 | |
| Zn | 0.4 | |
| Ni | - | |
| Ti | 0.1 | |
| Other | Each | 0.05 |
| Total | 0.15 | |
| Al | Remains | |
Mechanical Property for Direct Casting
| Alloy | 8011 | 5182 |
| Temper | H14 | H14 |
| Thickness (mm) | 0.15~0.25 | 0.15~0.25 |
| U.T.S (Mpa) | 125~155 | 150~200 |
| Elongation (%) | ≧2 | ≧1 |
5182 Aluminum Coil Sheet for Closure Caps Performance
- Corrosion resistance: 5182 Aluminum Coil Sheet has good corrosion resistance and can be used in solutions with moisture or mild corrosiveness. It is often used to make caps for carbonated drinks.
- Formability: The alloy has good formability and can be easily formed and molded into closures of various sizes and designs. This molding flexibility allows manufacturers to meet different customer needs.
- Strength: While not as strong as some other aluminum alloys, 5182 is still strong enough to withstand the stresses encountered during the manufacturing process as well as during seal cap handling and shipping.
- Weldability: 5182 aluminum is easily welded using common welding techniques such as MIG (Metal Inert Gas) welding or TIG (Tungsten Inert Gas) welding. This facilitates assembly of the closure with other components such as linings or anti-tamper features.
- Recyclability: Like all aluminum alloys, 5182 is fully recyclable with no loss of quality. This recyclability is an important factor in the packaging industry’s sustainability efforts.
5182 aluminum cover closed coil applications
| Can lid aluminum alloy | 5182H48 / 5052H48 / 5042H48 / 3104H48 |
| Can body aluminum alloy | 3104H19 |
| Size range | 0.2-0.51mm×150-1900mm |
5182 H48 aluminum coil is one of the choices for producing beverage can lids and is suitable for making internal pressure can lids. This aluminum is known for its excellent formability, good corrosion resistance, light weight and strength, making it ideal for can lids.
- 5182 aluminum twist off lid sheet
- 5182 aluminium sheet for beverage can making
- 5182 Aluminum Coil For Can End
- 5182 H19 Aluminum coil for pull tap
- Can end pull tab
- beer over
- beverage lid
- beer cap
- Aluminum can lid
5182 Aluminum Coil Sheet for Closure Caps Manufacturing process
- Casting: The manufacturing process typically begins with casting an ingot or billet of 5182 aluminum alloy. These ingots are then homogenized to ensure uniformity of composition and structure.
- Rolling: The homogenized ingot is then hot rolled into coils of the required thickness. Hot rolling helps achieve the required mechanical properties and surface finish.
- Cold Rolling: Hot rolled coils can undergo further cold rolling to achieve the final thickness and surface finish required for capping applications. Cold rolling also gives the material extra strength and dimensional accuracy.
- Annealing: Cold rolled coils can be annealed, a heat treatment process that helps eliminate internal stress and improve formability.
- Slitting and Cutting: The roll is then slit and cut into sheets or strips of the required size, ready for further processing into closure caps.
- Forming and Stamping: 5182 aluminum sheet or strip is fed into a forming and stamping machine to form closures to specific designs and dimensions.
- Surface Treatment: Upon customer request, closures may receive surface treatments such as coating or printing for branding, decorative or functional purposes.
- Quality Control: Throughout the manufacturing process, strict quality control measures are adopted to ensure that the final product meets the requirements for size, mechanical properties, surface finish and corrosion resistance.
5182 aluminum coil sheet for closures is a carefully engineered material with customized properties and complex manufacturing processes designed to produce high-quality closures that meet the stringent requirements of the packaging industry.
